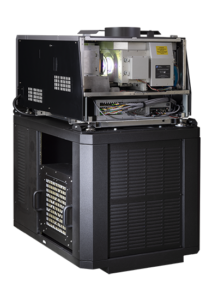

Helios install in an NEC projector

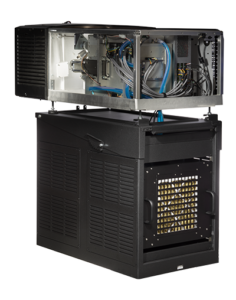

Helios install in a Christie projector

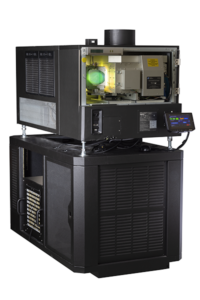

Helios install in a Sony projector

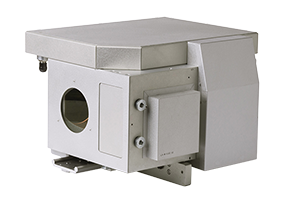

Laser Light Engine

  • Laser phosphor technology.  No speckle.
  • Independent blue channel for accurate color point control.
  • DCI P3 color gamut.
  • Compact optical design fits multiple projectors.
  • Liquid cooling system.
  • Long life, proprietary phosphor wheel.
  • High performance, long life laser diode modules.

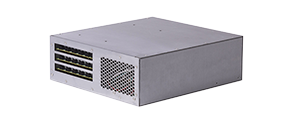

Laser Power Supply

  • Compact design. Fits easily in space formerly occupied by xenon lamp power supply.
  • High reliability AC/DC power converter modules.
  • Monitors laser diode temperatures and electrical characteristics.

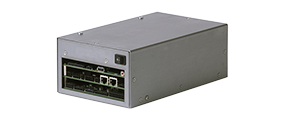

Control Unit

  • Seamless interface with projector. Plugs into same connector as lamp power supply.
  • Graphical user interface available with service and user level access.
  • Monitors system temperatures, coolant flow and other key parameters.

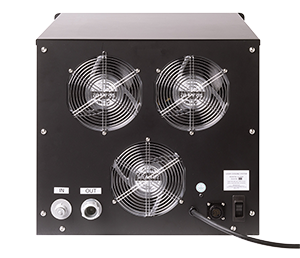

Cooling Unit

  • Rack mountable (9U size).
  • Magnetic drive seal-less coolant pump.
  • High performance variable speed fans.
  • Long life coolant.

Features

  • Modular, compact laser upgrade system. Fits multiple projectors.
  • Fast conversion from xenon lamps.
  • Can be relocated to other projectors with
    simple adapter change.
  • Eliminate potential performance, safety and environmental
    issues associated with xenon lamps.
  • Saves energy: lower electrical consumption,
    less cooling required.
  • Purchase or lease options.
  • Designed and manufactured in the USA

Warranty
3 years parts

Technical Data

ComponentDimensions (mm)Weight (kg)
Laser light engine388 x 304 x 24520
Laser power supply382 x 331 x 11512
Control unit250 x 153 x 924
Cooling unit570 x 483 x 60018

Electrical requirements
Laser power supply 100-240 VAC, 17.1-12.3 A, 50/60 Hz
Control unit 100-240 VAC, 2.3-1.1 A, 50/60 Hz
Cooling unit 90-264 VAC, 4.85-2.6 A, 50/60 Hz

Environmental
Operating temperature:  5 to 35 deg C
Operating humidity: 10-85% non-condensing
Storage temperature:  -10 to 50 deg C
